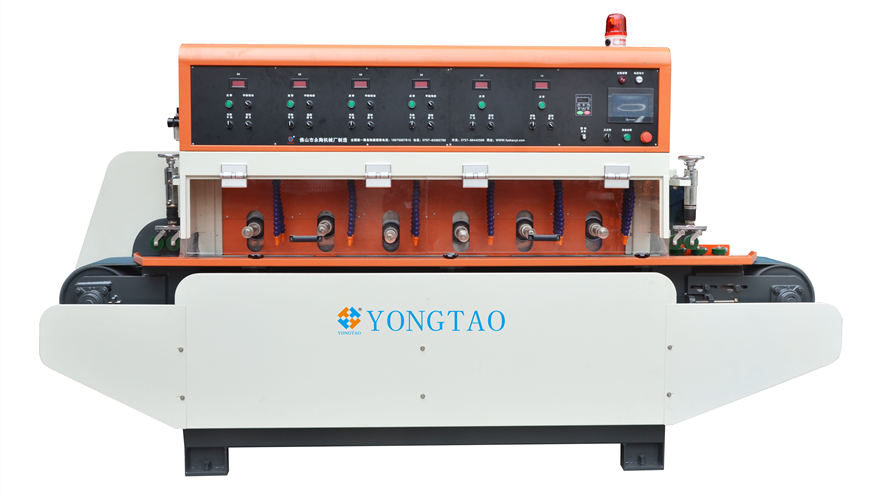

YSXP-150 6 Head Automatic Marble Molding Machine
Yongtao 6-head marble molding machine features 2 heads for molding and 4 heads for polishing. Perfect for processing stone bullnose moldings with high precision and efficiency.
Product introduction
Description of YSXP-150 6 Head Automatic Marble Molding Machine
YSXP-150 6 Head Automatic Marble Molding Machine,This marble molding machine is the new generation product of YONGTAO Machinery. It has2 heads to profile, and 4 heads to polish. The polishing wheel adopts automatic control system. The machine adopts separate spindle, which can realize fast wheels replaced. To change one sets of wheels(6pcs), totally need 2 minutes, very simple and fast, it great save the labor cost, and improve the stability of product effect.You can also check granite edge polisher machine
Stone Moulding Polishing Machine:
YSXP-150 6 Head Automatic Marble Molding Machine Processed products:
1、Marble Bullnose Ogee Moldings
2、Stone Bullnose Moldings
3、Marble Moulding Border Decos
4、Stone Ogee Mouldings
5、Stone Moulding
6、Marble Chair Rail
7、Marble Trim Moldings
9、Marble Crown Molding
10、Marble Skirting Baseboard Decorative Polished
11、Marble Chair Rail Decorative Crown Molding
12、Marble Stone Pencil Molding Trim
13、Ogee Molding 2 x 12 Tile
14、3/4 x 12 Pencil Liner Trim Molding Honed Marble
15、marble 2x12 chair rail decorative crown molding bullnose trim double
Parameter of YSXP-150 6 Head Automatic Marble Molding Machine
Machine specifications
| Nos. of profile head | 2pc |
|---|---|
| Nos. ofpolish head | 4pc |
| Diameter of wheel | Φ150mm*30mm |
| Motor power of profile head | 7.5kw |
| Motor power of polish head | 5.5kw |
| Method of polishing | automatic |
| Processing width | 30-150mm |
| Conveyor belt width | 250mm |
| Processing speed | 0.3-1.5m/min |
| Max processing thickness | 60mm |
| Total power | 40.32kw |
| Air consumption | 30L/min |
| Water consumption | 400L/min |
| Size of machine | 3.48m*1.24m*1.85m |
| Weight | About2800 kg |
Technical data reflects the legacy product record. Confirm voltage, options and final configuration with the approved quotation.
Bring the material. We’ll plan the process.
Send your material, maximum dimensions and production target. We will help you confirm the suitable machine configuration.
